1. Introduction to ZB-YJV22 flame retardant B armored cable products:

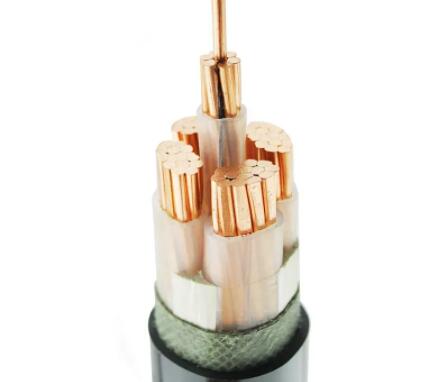

ZB-YJV22 cable : copper conductor flame retardant Class B crosslinked polyethylene insulated polyvinyl chloride inner sheathed steel belt armored polyvinyl chloride outer sheathed force cable . Cross-linked polyethylene insulated (YJ) , polyvinyl chloride sheath (V) , steel tape armor (22) , B- grade flame retardant (ZB) power cables.

2. ZB-YJV22 flame retardant armored cable product parameters:

Product model: ZB-YJV22

Rated voltage: 0.6/1KV

Product color: black

Number of cores: single core, two core, three core, four core, five core, 3+1 core, 3+2 core, 4+1 core

Cross-section: single core (10mm2--630mm2) , two core (4mm2--400mm2), three core (2.5mm2--400mm2) ,

Four core, five core (1.5mm2--400mm2) , 3+1 core, 3+2 core (2.5mm2--400mm2)

Length: Rice can be cut according to customer requirements, and supports customization

Scope of application: Suitable for use in the rated voltage of the power frequency 0.6/1kv and in distribution network or industrial equipment.

2. Uses of ZB-YJV22 flame retardant armored cables:

1. The mechanical protective layer of armored cables can be added to any structure of cables to increase the mechanical strength of the cables and improve the anti-corrosion ability. It is a wire and cable designed for areas that are susceptible to mechanical damage and extremely susceptible to corrosion.

2. It can be laid in any way, which is more suitable for direct buried laying in rocky areas. Armored cables are generally fixed and laid power cables. In layman's terms, they are fixed in one place without moving, and the power line transmits electricity.

3. In addition to the above, the purpose of cables and armored layers can also enhance the tensile strength, compressive strength and other mechanical protection to extend service life. The armor has certain resistance to external force, and can also be wary of mice biting, so as not to cause power transmission problems through the armor. The bending radius of the armor must be large, and the armor layer can be grounded to protect the cable.

4. Common specifications, models and uses ;

ZA-YJV22 , ZB-YJV22 , cross-linked polyethylene insulated steel strip armored polyvinyl chloride sheath A (B) flame-retardant power cables are suitable for buried laying when there are fire resistance requirements, and are not suitable for laying in pipelines.

ZA-VV22 , ZB-VV22 , polyvinyl chloride insulated steel strip armored polyvinyl chloride sheathed A (B) flame-retardant power cables are suitable for buried laying when there are fire resistance requirements, and are not suitable for laying in pipelines.
