1.ZB-YJV22Flame retardantBClassArmored cable product introduction:

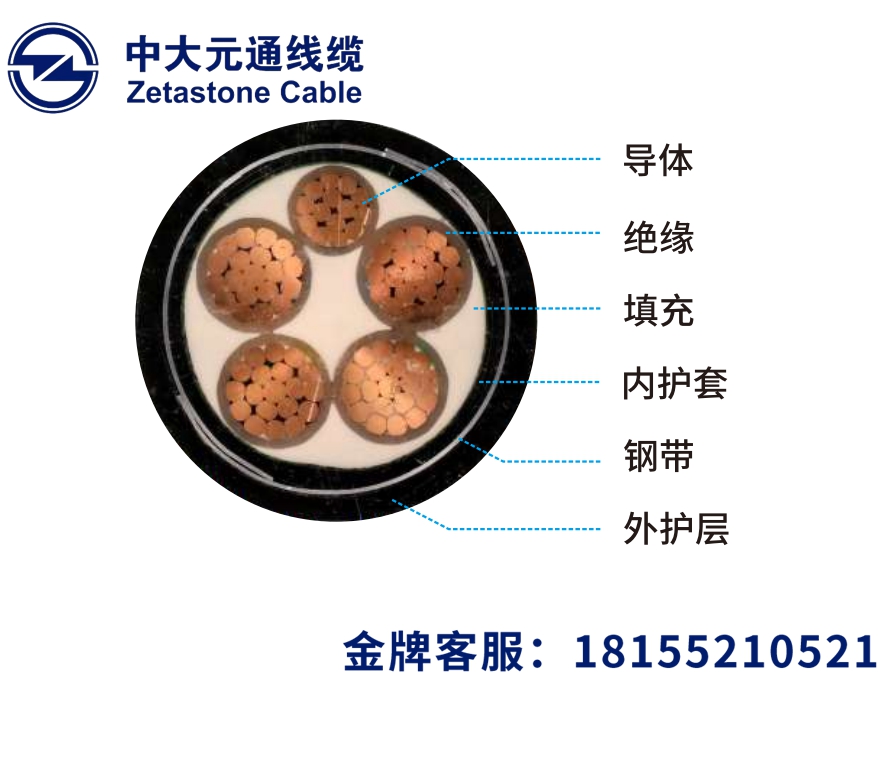

ZB-YJV22Cable:flame retardant copper conductorBXLPE-like insulated PVC inner sheath steel tape armored PVC outer sheath force cable. XLPE Insulation(YJ)PVC sheath(V)Steel tape armored(22),BGrade flame retardant(ZB)Power cable.

2.ZB-YJV22Flame retardant armored cable product parameters:

Product model:ZB-YJV22

Rated voltage:0.6/1KV

Product color: black

Core number: single core, two core, three core, four core, five core,3 1Core,3 2Core,4 1Core

Cross Section: Single Core(10 mm2 -630 mm2), two core(4 mm2 -400 mm2),three core(2.5 mm2 -400 mm2),

Four-core, five-core(1.5 mm2 -400 mm2),3 1Core,3 2Core(2.5 mm2 -400 mm2)

Length: can be cut according to customer requirements, support customized

Scope of application: suitable for power frequency rated voltage0.6/1kvAnd for laying in distribution networks or industrial installations.

2. ZB-YJV22flame retardant armored cable uses:

1The mechanical protective layer of the armored cable can be added to the cable of any structure to increase the mechanical strength of the cable and improve the anti-erosion ability. It is a wire and cable designed for areas that are susceptible to mechanical damage and erosion.

2It can be laid in any way, which is more suitable for direct buried laying in rock areas. Armored cable is generally fixed laying power cable, popular is fixed in a place and basically does not move, power line transmission power.

3In addition to the above, the purpose of the cable plus the armor layer can also enhance the tensile strength, compressive strength and other mechanical protection to extend the service life. The armor has certain resistance to external force, and can also guard against mouse bite, so as not to cause power transmission problems through the armor. The bending radius of the armor should be large, and the armor layer can be grounded to protect the cable.

4.Commonly used specifications and uses;

ZA-YJV22,ZB-YJV22XLPE insulated steel tape armored PVC sheathA( B)Class I flame-retardant power cables are suitable for buried laying when fire resistance is required, but not suitable for laying in pipelines.

ZA-VV22,ZB-VV22PVC insulated steel tape armored PVC sheathA( B)Class I flame-retardant power cables are suitable for buried laying when fire resistance is required, but not suitable for laying in pipelines.
