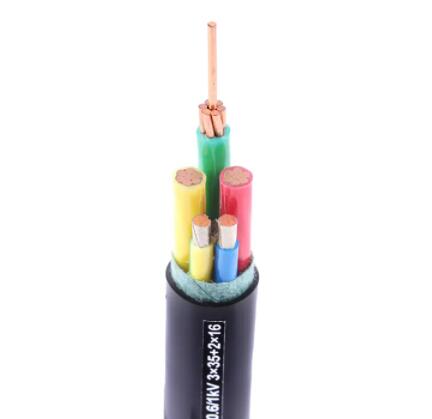

ZCN-YJV:CGrade flame retardant and fire-resistant crosslinked polyvinyl chloride insulated polyvinyl chloride sheathed copper core power cable

Model specifications:ZCN-YJV 3X50square

Rated voltage:0.6/1KV

Product color: black

Product length: Cropped rice

Implementation criteria:GB/T12706.1-2008

Scope of application:Suitable for AC rated voltage0.6/1KVSubways, high-rise buildings, shopping malls, theaters, power stations, chemical factories, city squares and other public utilities below that require high flame retardant characteristics of cables.

ZCN-YJVCable specifications and models: single core, two core, three core, four core, five core,3+1core,3+2core,4+1core

cross section:10square,16square,25square,35square,50square,70square,95square,120square,150square,185square,240square,300square,400square;10Below square (1.5square--6Square) Due to the small cross-sectional area, the factory production department generally does not make small cross-sectional area.

ZCN-YJVFeatures of cable flame retardant and fire-resistant wires and cables: The characteristic of flame retardant cables is to delay the spread of flame along the cable so that the fire will not expand. Due to its low cost, it is a widely used cable variety in fire-resistant cables. Whether it is a single cable or bundled laying, the spread of the flame can be controlled within a certain range when the cable is burned, so it can avoid major disasters caused by ignition and delay combustion, thereby improving the fire protection level of the cable line.

The refractory cable can maintain normal operation for a certain period of time under flame combustion, and can maintain the integrity of the line. The amount of acid gas smoke generated when the refractory cable is burned is small, and the fire resistance and flame retardant performance is greatly improved. Especially during combustion, the cable can still maintain the complete operation of the line with water spray and mechanical blows.
