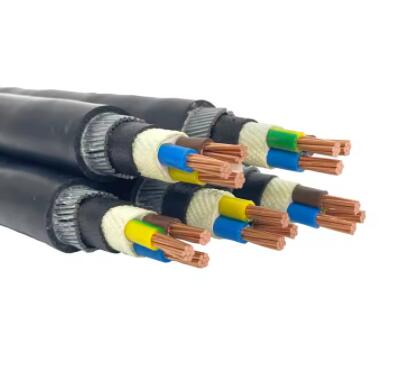

WDZA-YJY: Low smoke, halogen-free A-grade flame-retardant copper coreCrosslinked polyethyleneInsulated polyethylene sheath pre-branchPower cable

Cable model: WDZA-YJY

Voltage level: 0.6/1kV

Cable specifications: WDZA-YJY 3X150+1X70 square meters

Implementation standards: National standards

Flame retardant performance: Class A flame retardant

Environmental performance: There is a small amount of smoke and harmful gases during combustion

Model specification extension

Model: WDZ(A, B, C)-YJY

Name: Copper core cross-linked polyethylene insulated polyolefin sheath low smoke halogen-free flame retardant power cable

Nominal cross-sectional area mm²: 1.5-300 (1~5 cores)

Model: WDZ(A, B, C)N-YJY

Name: Copper core cross-linked polyethylene insulated polyolefin sheath low smoke, halogen-free flame retardant and fire-resistant power cable

Nominal cross-sectional area mm²: 1.5-300 (1~5 cores)
