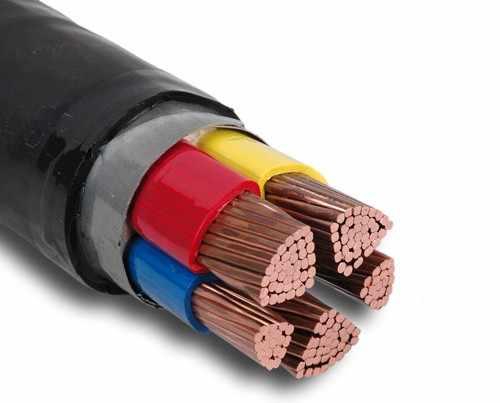

Product name: Flame-retardant B-grade crosslinked polyethylene insulated polyvinyl chloride sheathed power cable;

Product model: ZB-YJV 4X300+1X150MM²

Rated voltage: 0.6/1KV

Implementation standard: GB/T 12706.1-2008

Laying temperature: The laying temperature of the cable shall not be lower than 0℃

Working temperature: The long-term allowable working temperature of the cable conductor is 90℃

Bending radius: The bending radius of single-core cable does not exceed 20D, and the bending radius of multi-core cable does not exceed 15D.

Product Features: This product has a certain ability to prevent or delay the occurrence or spread of flames. It has a wide range of raw materials and is cheap and easy to process and manufacture.

Scope of application: Indoors, cable trenches, pipelines, direct buried applications in metallurgy, electricity, construction and other industries and cannot withstand external mechanical forces.

【Main products】0.6/1KV cross-linked polyelectric cable, 3.6/6KV-26/35KV cross-linked polyelectric cable, plastic insulated control cable, low smoke, halogen-free, flame retardant, fire-resistant, power cable, insulated wire, computer cable, Signal cables, communication cables, BV/BVR insulated wires, power low-voltage cables, electrical equipment wires and cables, copper core power cables, copper core wires and cables, sheathed wires and cables, video wires and cables, signal wires and cables, copper core wires and cables
