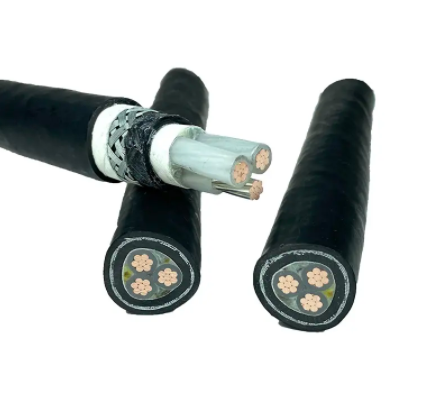

WDZB-YJY--Low smoke, halogen-free B-grade flame retardant-crosslinked polyethylene insulated polyolefin sheathed power cable.
Rated voltage: 0.6/1KV
Length: Starting from 50 meters, can be customized or cut rice according to customer requirements
WDZB-YJY specifications: single core, two core, three core, four core, five core, 3+1 core, 3+2 core, 4+1 core
Cross-section: 10 squares, 16 squares, 25 squares, 35 squares, 50 squares, 70 squares, 95 squares, 120 squares, 150 squares, 185 squares, 240 squares, 300 squares, 400 squares; less than 10 squares (1.5 squares-- 6 square meters) Due to the small cross-sectional area, the factory production department generally does not make small cross-sectional area.
WDZB-YJY uses: can be laid in indoors, tunnels and pipes that require flame retardant and halogen-free and low smoke.
1. Low smoke and halogen-free wire characteristics:
(1) Tensile strength is greater than that of general PVC wires: the tensile strength of general PVC wires is greater than 1.05Kgf/mm2, while the tensile strength of low-smoke halogen-free wires is greater than 1.2Kgf/mm2;
(2) Have good weather resistance (-30℃~105℃);
(3) Have good softness (hardness is 80-90);
(4) It has non-transferability (because there is no need to add plasticizer to this product formula, so there will be no deformation);
(5) No toxic black smoke will be produced during burning (a small amount of white smoke will be produced);
(6) Has a high volume resistivity: PVC wires are generally 1012~1015Ω/cm3, and low-smoke, halogen-free wires are greater than 1016Ω/cm3;
(7) Have good high voltage resistance characteristics: PVC wires generally withstand more than 10KV, while low-smoke, halogen-free wires are as high as more than 15KV;
(8) Have good elasticity and viscosity.
