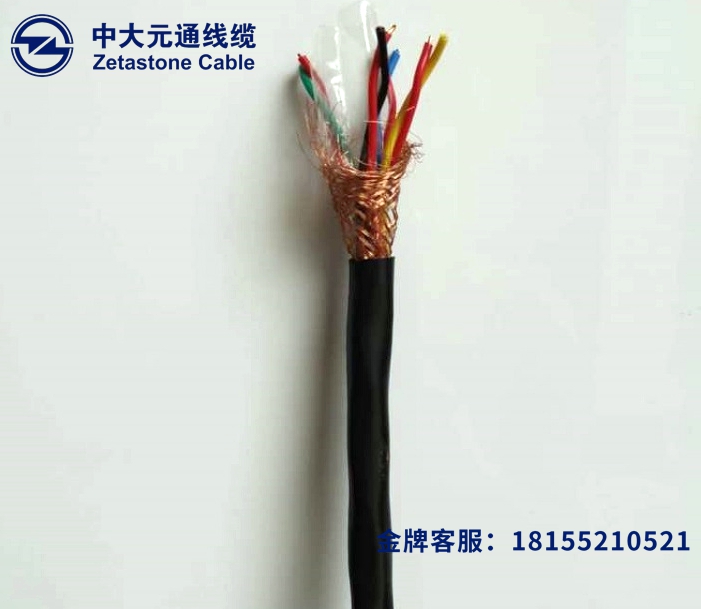

DJYVP computer cable model represents the meaning: polyethylene insulated copper wire braided total shield PVC sheathed flame retardant electronic computer cable.
DJYVP computer cable use:
Suitable for power generation, metallurgy, petrochemical, enterprises, network computer-centric industrial automation control system, used for data and signal transmission, including communication, remote control, pressure and fluid measurement, indicator light connection, etc., the work site and Control instrument connection, complete instructions, recording, detection, control, alarm and other functions are computer control cables, electric and distributed instrument signal cables upgrade products.
Cable allowable bending radius:-no armored cable, should be not less than the cable diameter of 8 times-armored or metal with shielding structure of the cable, should be not less than the cable diameter of 12 times-a shielding layer structure of the flexible cable, should be not less than the cable diameter of 8 times.
3. product features:
1. Rated voltage: UO/U 300/500V.
2. Conductor core working temperature: PVC and low halogen low smoke flame retardant PVC insulation: 70 ℃ and 105 ℃ two
Polyethylene insulation: 70 ℃; XLPE insulation: 90 ℃
Halogen-free low smoke flame retardant polyolefin: 70 ℃
Halogen-free low smoke flame retardant crosslinked polyolefin 90 ℃ and 125 ℃ two
3. Minimum ambient temperature: fixed laying -40 ℃
Non-fixed laying -15 ℃
4. Cable allowable minimum bending radius: non armored, interlocking or braided armored cable is not less than 6 times
Copper tape shielding or steel wire, steel tape winding armored cable is not less than the cable diameter of 12 times
5. Flame retardant characteristics: in line with GB/T 19666-2005 standard, Class A or Class B.
