Yuantong BBTRZ flexible mineral insulated fireproof cable

Time:2025-04-11    Visits:0

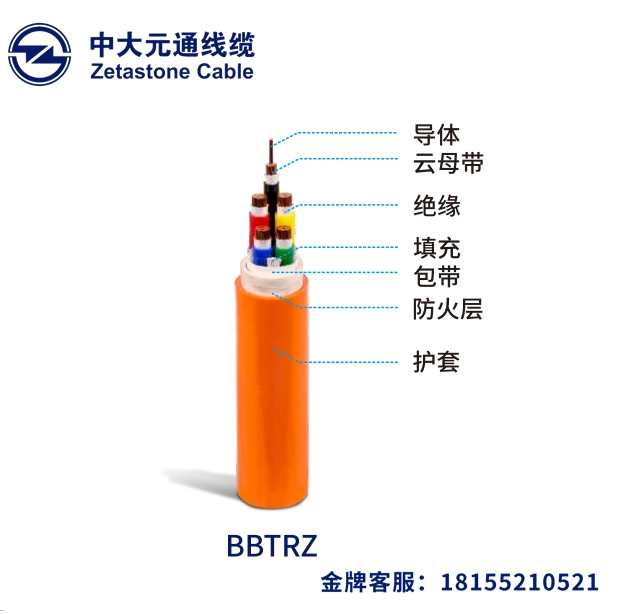

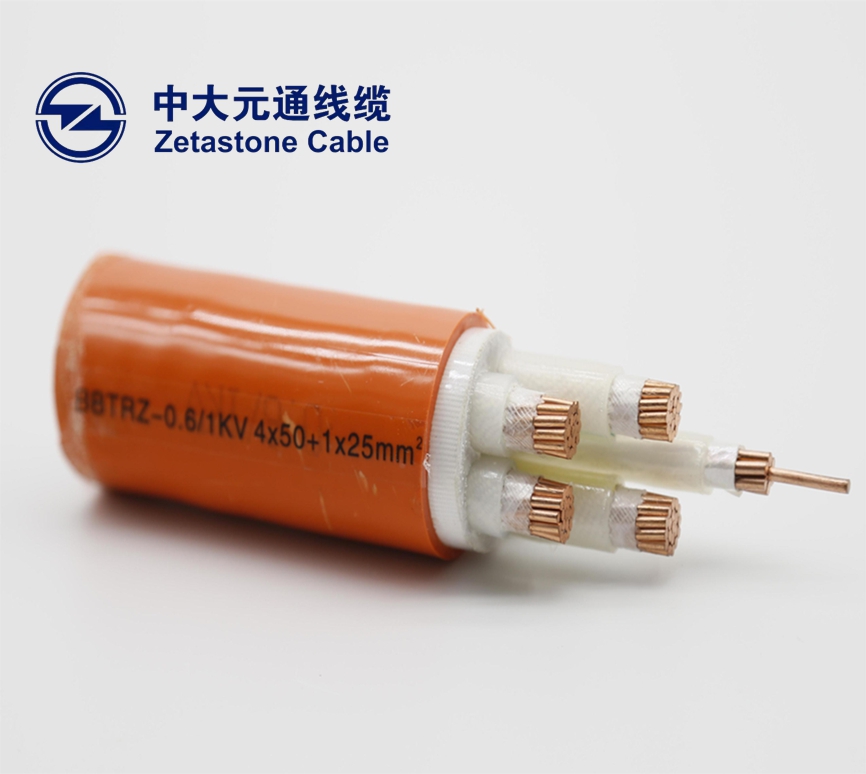

Yuantong BBTRZ flexible mineral insulated fireproof cable
production standards

This product according to the the People's Republic of China national standard of GB/T34926-2017 manufacturing.

Scope of use

voltage level: suitable for rated voltage level 0.6/1kV

Product specifications: 1-5 core, 1.5-630mm ²

元通BBTRZ柔性矿物绝缘防火电缆

Using Features

Flexible, the cable can be rewound on the cable reel with a minimum bending radius of ≤ 20D.

When burning smoke-free non-toxic, insulation using inorganic materials (not burning body), burning will not produce any harmful gases

Large overload capacity, the cable not only has a large current carrying capacity, but also has a large overload capacity

Corrosion resistance, organic insulation fire-resistant cables sometimes need to wear plastic pipes or iron pipes, plastic pipes are easy to age and become brittle, iron pipes are easy to rust, fire-resistant cables have copper sheaths that do not need to wear pipes, and copper sheaths have good corrosion resistance.

The shielding performance is superior. When the fireproof cable is laid in the same shaft with the information and control lines, it will not interfere with the information transmitted by the signal and control wire and cable under the shielding of the copper sheath.

Good safety performance, fireproof cable can normally supply power in the flame, start fire extinguishing equipment, reduce fire loss, its copper sheath is an excellent conductor, and continuous to the full length of the cable, grounding protection sensitivity and high reliability

Long service life, high temperature resistance of inorganic insulation materials, and not easy to aging, his life is many times higher than the organic insulation cable

Transportation and installation of flexible fireproof cables, including installation accessories, are similar to ordinary cables and are relatively simple.
