1. Introduction to ZBN-YJV22 flame retardant Class B fire-resistant armored cables:

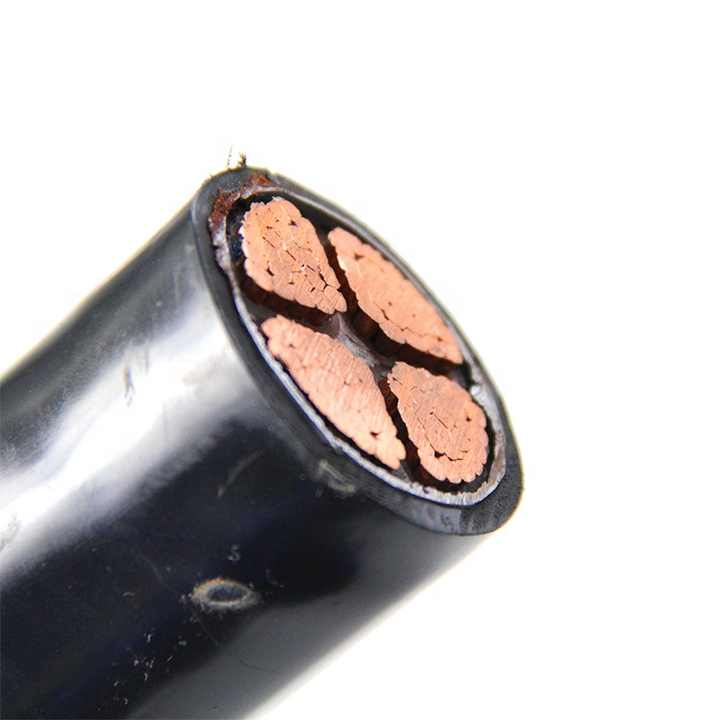

ZBN-YJV22 cable: copper conductor flame retardant Class B refractory crosslinked polyethylene insulated polyvinyl chloride inner sheathed steel belt armored polyvinyl chloride outer sheath force cable. Cross-linked polyethylene insulation (YJ), polyvinyl chloride sheath (V), steel tape armor (22), B-grade flame retardant (ZB) power cable, fire-resistant (N).

2. Product parameters of ZBN-YJV22 flame retardant and fire-resistant armored cable:

Product model: ZBN-YJV22

Rated voltage: 0.6/1KV

Product color: black

Number of cores: single core, two cores, three cores, four cores, five cores, 3+1 cores, 3+2 cores, 4+1 cores

Cross-section: single core (10mm2--630mm2), two core (4mm2--400mm2), three core (2.5mm2--400mm2),

Four core, five core (1.5mm2--400mm2), 3+1 core, 3+2 core (2.5mm2--400mm2)

Length: Rice can be cut according to customer requirements, and supports customization

Scope of application: Suitable for use in the rated voltage of the power frequency 0.6/1kv and in distribution network or industrial equipment.

2. Uses of ZBN-YJV22 flame retardant and fire-resistant armored cables:

1. The mechanical protective layer of armored cables can be added to any structure of cables to increase the mechanical strength of the cables and improve the anti-corrosion ability. It is a wire and cable designed for areas that are susceptible to mechanical damage and extremely susceptible to corrosion.

2. It can be laid in any way, which is more suitable for direct buried laying in rocky areas. Armored cables are generally fixed and laid power cables. In layman's terms, they are fixed in one place without moving, and the power line transmits electricity.

3. In addition to the above, the purpose of cables and armored layers can also enhance the tensile strength, compressive strength and other mechanical protection to extend the service life. The armor has certain resistance to external force, and can also be wary of mice biting, so as not to cause power transmission problems through the armor. The bending radius of the armor must be large, and the armor layer can be grounded to protect the cable.

4. Common specifications, models and uses;

ZAN-YJV22, ZBN-YJV22, cross-linked polyethylene insulated steel strip armored polyvinyl chloride sheath A (B) flame retardant and fire-resistant power cables are suitable for buried laying when there are fire resistance requirements, and are not suitable for laying in pipelines.

ZAN-VV22, ZBN-VV22, PVC insulated steel strip armored polyvinyl chloride sheath A (B) flame retardant and fire-resistant power cables are suitable for buried laying when there are fire resistance requirements, and are not suitable for laying in pipelines.
