This product according to the the People's Republic of China national standard GB5023(1997) standard production.
The standard is equivalent to the International Electrotechnical Commission standard IEC227(1993).
This product is suitable for rated voltage U/U450/750V and the following power plant fixed laying.
Working temperature: normal work, the conductor maximum temperature is 70 ℃ and 90 ℃
Laying temperature: cable laying environment temperature is not lower than 0 ℃
Bending radius: the outer diameter (D) is not less than 25mm cable allowable bending radius is not less than 4D; the outer diameter (D)≥ 25mm cable allowable bending radius is not less than 6D( the company note: the company also produces JB8734 model series wiring).
| Model | Name | Applicable scope |
|
BV
|

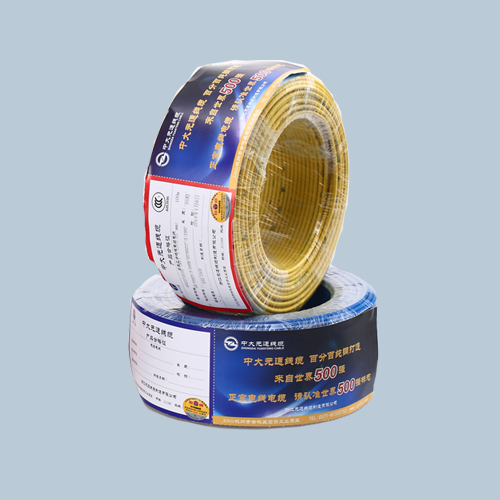

Copper core PVC insulated wire
Copper core PVC insulation power wire |
Fixed laying
|
|
BVVB
|
Copper core PVC insulated PVC sheathed flat cable
Copper core PVC insulation PVC sheath parellel insulation power wire |
Fixed laying
|
|
BVR
|
copper core PVC insulated flexible wire
Copper core PVC insulation flexible power wire |
Wiring requires soft occasions
|
|
BVV
|
copper core PVC insulated PVC sheathed round wire
Copper core PVC insulation PVC sheath round insulation |
Fixed laying
|
