According to the the People's Republic of China machinery industry GB/T12706.1-2008, GB/T12706.2-2008, GB/T12706.3-2008 standards for production products
0.6/1kV, 3.6/6kV, 8.7/15kV, 12/20kV, 18/30kV, 21/35kV, 26/35kV
Product specifications: 1, 3 core,10-630mm ²
Cable conductor **allowable working temperature: 90 ℃
Short circuit (the longest time does not exceed 5s) cable conductor maximum temperature does not exceed 250 ℃
Cable laying environment temperature should not be lower than 0 ℃
Cable bending radius: three-core cable not less than cable diameter 15 times; single-core cable not less than cable diameter 20 times
| Product Name | Model | Performance characteristics |
|

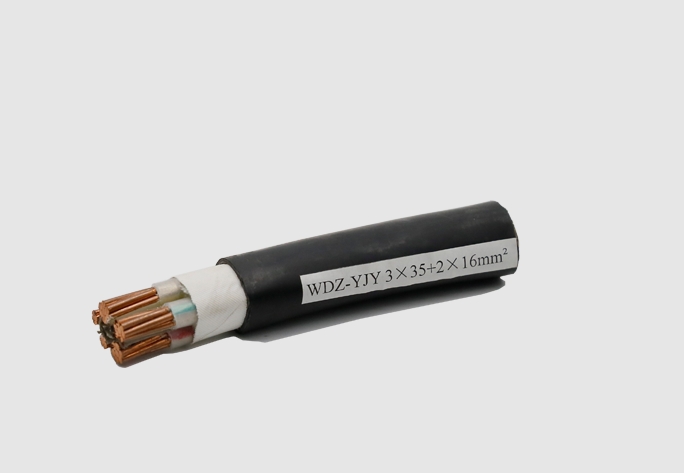

WDZ-YJY 0.6/1kV
|
XLPE insulated non-halogen low smoke polyolefin sheathed power cable
|
The product is suitable for distribution networks or industrial installations.
|
|
WDZ-YJLY 0.6/1kV
|
Aluminum conductor XLPE insulated halogen free low smoke polyolefin power cable
|
The product is suitable for distribution networks or industrial installations.
|
|
WDZ-YJLY23 0.6/1kV
|
Aluminum conductor XLPE insulated steel tape armored halogen-free low smoke polyolefin sheathed power cable
|
The product is suitable for distribution networks or industrial installations.
|
|
WDZ-YJY 3.6/6kV
|
XLPE insulated non-halogen low smoke polyolefin sheathed power cable
|
The product is suitable for distribution networks or industrial installations.
|
|
WDZ-YJY23 3.6/6kV
|
XLPE insulated steel tape armored non-halogen low smoke polyolefin sheathed power cable
|
The product is suitable for distribution networks or industrial installations.
|
|
WDZ-YJY 6/10kV
|
XLPE insulated non-halogen low smoke polyolefin sheathed power cable
|
The product is suitable for distribution networks or industrial installations.
|
|
WDZ-YJY23 6/10kV
|
XLPE insulated steel tape armored non-halogen low smoke polyolefin sheathed power cable
|
The product is suitable for distribution networks or industrial installations.
|
|
WDZ-YJY 8.7/15kV
|
XLPE insulated non-halogen low smoke polyolefin sheathed power cable
|
The product is suitable for distribution networks or industrial installations.
|
|
WDZ-YJY23 8.7/15kV
|
XLPE insulated steel tape armored non-halogen low smoke polyolefin sheathed power cable
|
The product is suitable for distribution networks or industrial installations.
|
|
WDZ-YJY 12/20kV
|
XLPE insulated non-halogen low smoke polyolefin sheathed power cable
|
The product is suitable for distribution networks or industrial installations.
|
|
WDZ-YJY23 12/20kV
|
XLPE insulated steel tape armored non-halogen low smoke polyolefin sheathed power cable
|
The product is suitable for distribution networks or industrial installations.
|
|
WDZ-YJY 18/30kV
|
XLPE insulated non-halogen low smoke polyolefin sheathed power cable
|
The product is suitable for distribution networks or industrial installations.
|
|
WDZ-YJY23 18/30kV
|
XLPE insulated steel tape armored non-halogen low smoke polyolefin sheathed power cable
|
The product is suitable for distribution networks or industrial installations.
|
|
WDZ-YJY 21/35kV
|
XLPE insulated non-halogen low smoke polyolefin sheathed power cable
|
The product is suitable for distribution networks or industrial installations.
|
|
WDZ-YJY23 21/35kV
|
XLPE insulated steel tape armored non-halogen low smoke polyolefin sheathed power cable
|
The product is suitable for distribution networks or industrial installations.
|
|
WDZ-YJY 26/35kV
|
XLPE insulated non-halogen low smoke polyolefin sheathed power cable
|
The product is suitable for distribution networks or industrial installations.
|
|
WDZ-YJY23 26/35kV
|
XLPE insulated steel tape armored non-halogen low smoke polyolefin sheathed power cable
|
The product is suitable for distribution networks or industrial installations.
|
