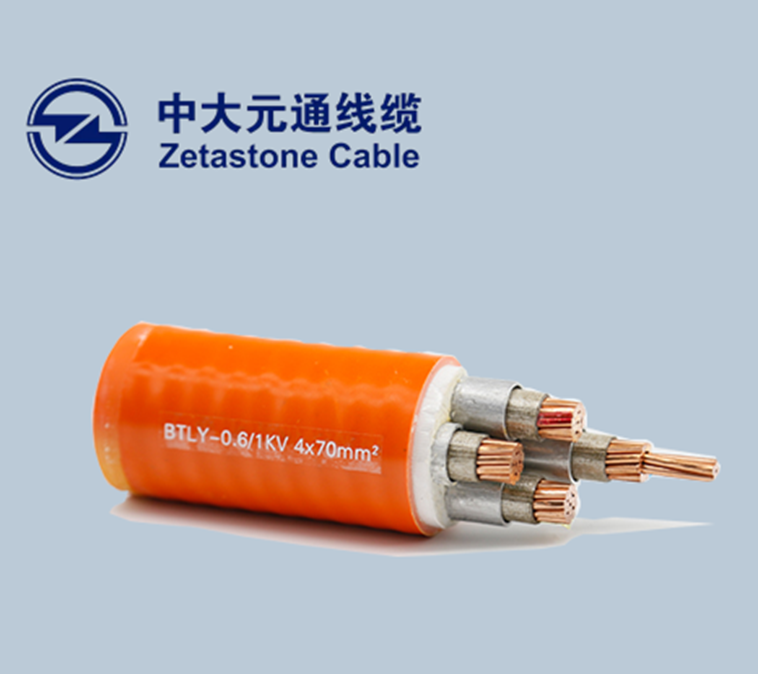

Yuantong BTLY Mineral Insulated Fireproof Cable

Time:2025-04-11    Visits:0
Yuantong BTLY Mineral Insulated Fireproof Cable
production standards

This product according to the company enterprise standard Q/ZDYT0302-2018 manufacturing.

Scope of use

Voltage level: suitable for rated voltage level 0.6/1kV

Product specifications: 1-5 core, 1.5-630mm ²

元通BTLY矿物绝缘防火电缆

Using Features

Fire resistance standard can pass BS6387 three assessment: that is, 950 ℃ 3h flame does not break down, 650 ℃ 30min after 15min of water spray (direct immersion can also be),950 ℃ flame under 15min of percussion vibration without damage, so as to fully meet the BTT assessment standard in fire resistance.

Length according to user needs, the whole root without joint whole disc delivery

Has good anti-rat, anti-ant, anti-radiation function, can ensure that the cable has stability, long life and durability

Mechanical high strength cable durable, in the cable diameter deformation 1/3 can still work, even if subjected to severe mechanical damage, will not damage its electrical properties.

Model, name and scope of use
Specifications number of cores Rated voltage
1.5 ~ 630mm ²
1 core Core
0.6/1KV
2.5 ~ 400mm ²
2.3.5 Core
0.6/1KV
4 to 240mm ²
4 core Core
0.6/1KV
