RTTZ(YTTW)

Time:2025-04-11    Visits:0
RTTZ(YTTW)
Production standard

This product refers to the the People's Republic of China national standard reference GB/T34926-2017 manufacturing.

Scope of use

voltage level: suitable for rated voltage level 0.6/1kV

Product specifications: 1-5 core, 1.5-630mm ²

Using Features

With flexibility, the cable can be reeled in the cable reel, its minimum bending radius ≤ 20D

Burning smokeless non-toxic, insulation using inorganic materials (not burning body), burning will not produce any harmful gases

Overload capacity is large, the cable not only has a large current carrying capacity, but also has a large overload capacity

Corrosion resistance, organic insulation fire-resistant cable sometimes need to wear plastic pipe or iron pipe, plastic pipe is easy to age and become brittle, iron pipe is easy to rust, fire-resistant cable has copper sheath does not need to wear pipe, copper sheath corrosion resistance is good

Shielding performance is superior, fireproof cable and information, control and other lines in the same shaft laying, in the copper sheath shielding, will not be on the signal, control wire and cable transmission information interference

Safety performance is good, fireproof cable can be in the flame in the normal power supply, start fire extinguishing equipment, reduce fire loss, the copper sheath is excellent conductor, and continuous to the cable length, grounding protection sensitivity and reliability

Service life is long, inorganic insulating material temperature resistance is high, and not easy to aging, his life than organic insulated cable many times

Flexible fireproof cable transportation and installation including installation accessories similar to ordinary cable, simpler

Model, name and scope of use
Model Voltage level Name
YTTW(BTTW)
0.6/1KV

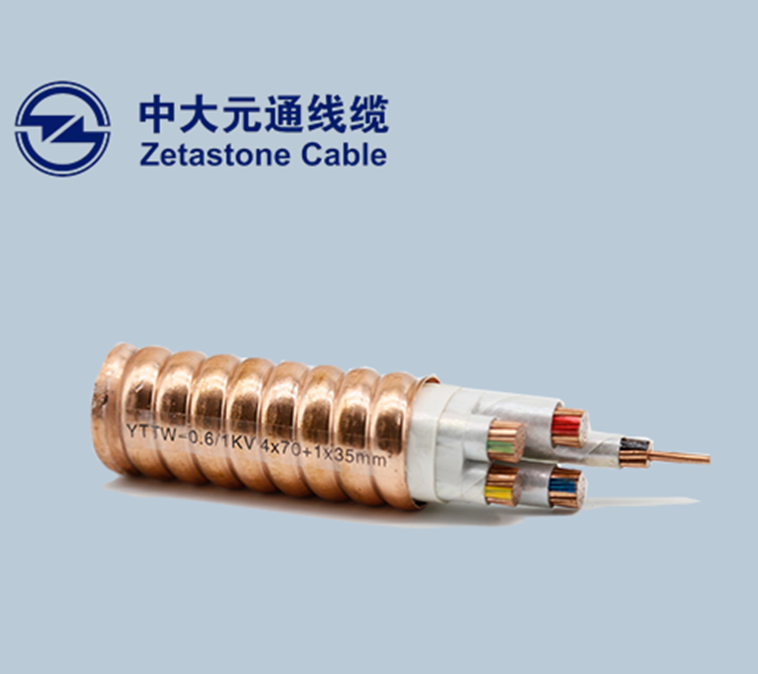

Copper core crimped copper sheathed inorganic mineral insulated fireproof cable
YTTWV(BTTWV)
0.6/1KV
Copper core crimped copper sheathed inorganic mineral insulated PVC sheathed fireproof cable
WD-YTTWY(WD-BTTWY)
0.6/1KV
Copper core crimped copper sheathed inorganic mineral insulated low smoke zero halogen polyolefin sheathed fireproof cable
